详细说明
特点
低启动阈值
单电位器
适应360度或540度
应用
高阻尼比
短距离延迟
定位锁
快速断开连接
内部加热器可以延长轴承寿命
AutoMet兼容
Performance Characteristics
Azimuth: Electrical 0 - 357°
Mechanical 0 - 360°
0 - 540° with appropriate translator
Threshold: 0.5 mph
Linearity: ±1/2% of full scale
Accuracy: ±3°
Damping Ratio: Standard 0.6 (Foam Tail)
Optional 0.25 (Metal Tail)
Delay Distance: Less than 3 ft (91 cm)
Temperature Range: -50°C to +65°C
Electrical Characteristics
Power Requirements: 12 VDC at 10 mA, 12 VDC at 350 mA for heater
Output Signal Selectable: a. 0 - 5 V for 0 - 360° (or 540°)
b. 0 - 2.5 V for 0 - 360° (or 540°)
Special Range: 0 - 1.0 V for 0 - 360° (or 540°)
Output Impedance: 100 ohms maximum
Physical Characteristics
Weight: 1.5 lbs (0.68 kg)
Finish: Clear anodized aluminum
Mounting: PN 191 Crossarm (Contains orientation lock)
下一篇: 高性能船用风速风向仪监视器套装

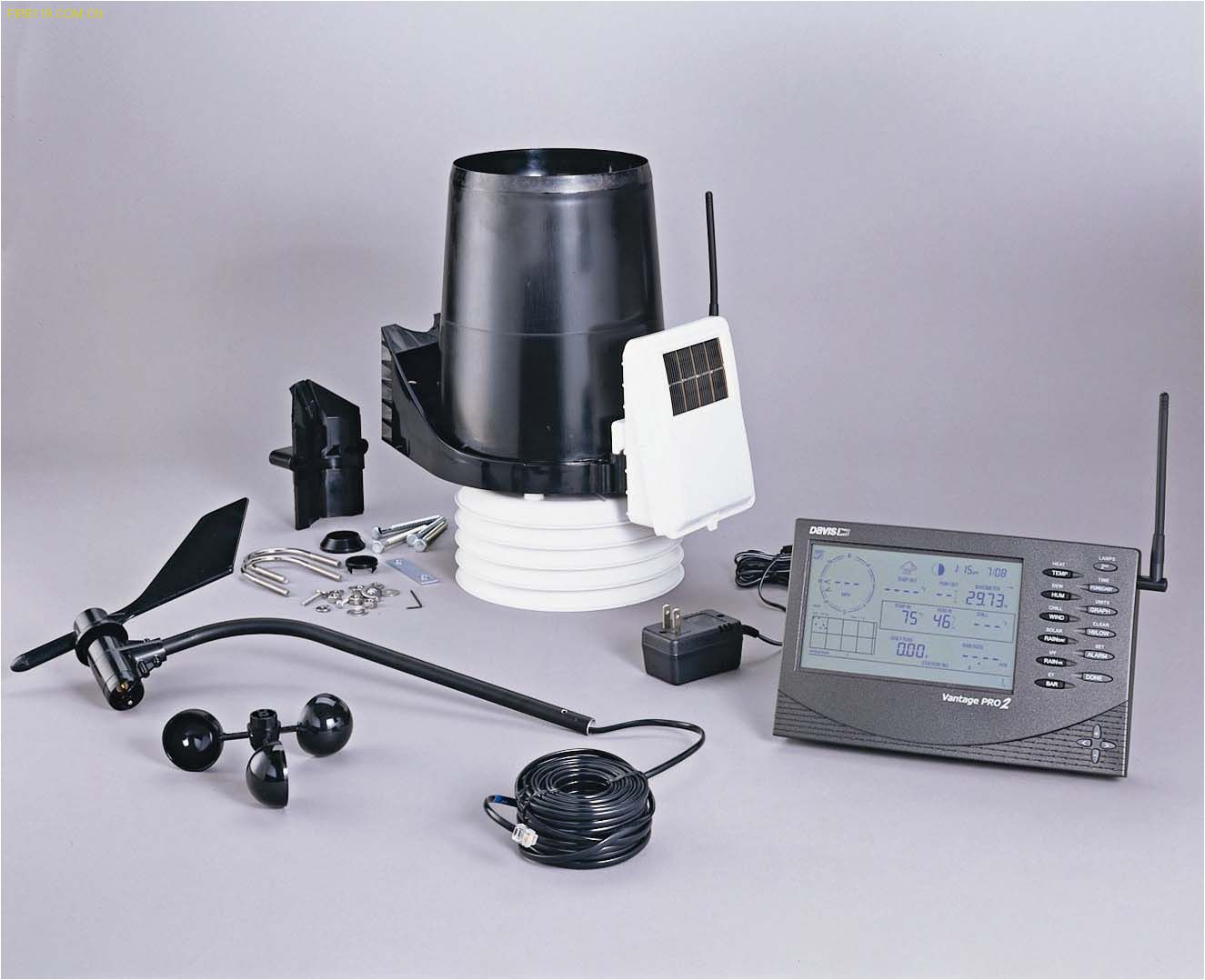

上一篇: Vantage Pro 2 数字化自动气象站
